Robotic Mechanized Construction Equipment
Plastering Robot
Product Features:
PMC3000iE:
Length: 900mm
Width: 750mm
Height: 1800mm
Move Speed: 0.3m/s
Plastering speed: 3min/plastering
Achievable Flatness & Verticality: ±3mm/2m
Applicable material: cement plaster
Plaster specification: 3.3m
PMC6000iE:
Length: 900mm
Width: 1100mm
Height: 1800mm
Move Speed: 0.3m/s
Plastering Speed: 3min/plastering
Achievable Flatness & Verticality: ±3mm/2m
Applicable material: cement plaster
Plaster Specification: 5.4m
Spraying Robot
Product Features:
PNP3000iC
Length: 850mm
Width: 760mm
Height: 1780mm
Weight: 600kg
Working Altitude: 3200mm
Move Speed: >0.5m/s
Battery Life: 4h
Working width: 1.8m
Materials: Interior Wall Putty Interior Wall Paint
Capacity per coat: 200㎡/h 300㎡/h
Specification: 3.2m
PNP6000iC
Length: 850mm
Width: 1110mm
Height: 1850mm
Weight: 950kg
Working Altitude: 6000mm
Move Speed: >0.5m/s
Battery Life: 4h
Working width: 2.4m
Materials: Interior Wall Putty Interior Wall Paint
Capacity per coat: 250㎡/h 375㎡/h
Specification: 6m
Putty & Latex Painting Robot
Product Features:
Battery Life: 4h
Barrel Capacity: 60L
Spraying Width: 800mm
Spraying Speed: 0.1-0.5m/s
Spraying Height: 3.3m
Spraying Pressure: 25MPa
Dimension: 780mm*780mm*1750mm
Weight: 620kg
Operation Configuration: 1 Robot+3 Workers (one for operation, one for scrapping and one for material supply)

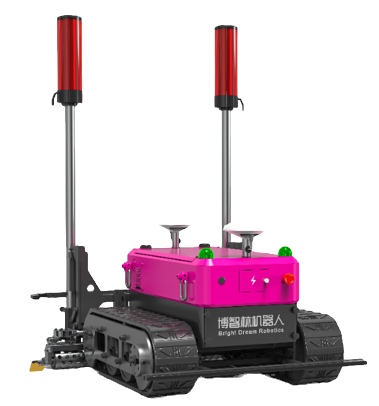

Floor Levelling Robot
Product Features:
-
Safety and environmental protection: low noise, environmentally friendly construction.
-
High efficiency: compared with traditional labor, construction efficiency is increased by more than 30%*.
-
High profit: compared with traditional labor, construction profit is increased by more than 31%*.
-
High quality: smaller flatness error, fewer cracks, more compact and uniform ground.
-
Intelligent: self-developed GNSS navigation system, integrated intelligent motion control algorithm, smoother operation, more precise control.
-
Reduced labor intensity of workers: high degree of automation, reduced labor intensity of workers.
Tile Laying Robot
Product Features:
Battery life: 4 hours
Payload capacity: - 60 litres (adhesive); - 5 pieces (tile)
Applicable tile size: 800 x 800 mm or 600 x 600 mm
Applicable tile weight: 20 kg (max.)
Dimensions: 960 x 780 x 1750 mm
Weight: 600 kg
Operation configuration: 1 robot + 2 workers (one for operation and one for material supply)
Concrete Smoothing Robot
Product Features:
Slewing diameter: 880 mm
Rotary speed of wiping disc: 0~150 rpm
Overall size: 2200*880*850 mm
Drive mode: motor-driven
Control mode: remote control
Control range: 200 m
Work efficiency: 200~400 ㎡/h*
Work speed: 0~0.45 m/s
Continuous working time: 4 h
Weight: 300 kg
Maximum angle of swing arm: 220 °
Rated power: 4 kW
