Spider Crane Products

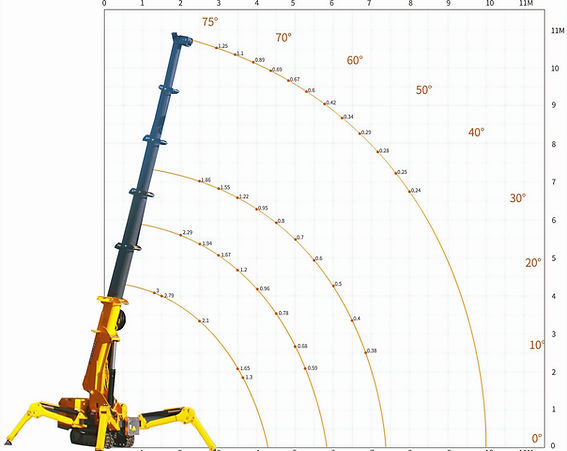

CS-3
Product Features: Max. Operating Radius 10m Max. Above Ground Lift 10.8m Winches Hook Rising Speed 0.8m/min Telescopic 2.4m per section Telescopic Boom Extension 3.1m-10.8m/20s Outrigger Max. Ext. 4300{L}x3700{R}x4300{F} Crawl Speed2.5km/h Slope 25deg (36%) Power AC380V Fuel/Vol Diesel oil/12L Fuel Consumption 274g/kW-h Noise Level 81.5dBA (1m)
CS-5
Product Features: Max. Operating Radius 15m Max. Above Ground Lift 17m Winches Hook Rising Speed 12m/min Telescopic 4m per section Telescopic Boom Extension 4.5m-17m/54s Outrigger Max. Ext. 5800{L}x4900{R}x5600{F} Crawl Speed 2.5km/h Slope 25deg (36%) Power AC380V Fuel/Vol Diesel oil/35L Fuel Consumption 274g/kW-h Noise Level 81.5dBA (1m)
CS-8
Product Features: Max. Operating Radius 18m Max. Above Ground Lift 21m Winches Hook Rising Speed 12m/min Telescopic 5m per section Telescopic Boom Extension 5.5m-21m/54s Outrigger Max. Ext. 7000{L}x5070{R}x6700{F} Crawl Speed 2.5km/h Slope 25deg (36%) Power AC380V Fuel/Vol Diesel oil/35L Fuel Consumption 274g/kW-h Noise Level 81.5dBA (1m)
CS-100
Product Features:
Maximum Working Height: 12m
Maximum Platform Height: 10m
Payload: 200kg
Working Radius: 5.8m
Rotation Range: 360
Outrigger Maximum Extention (mm): 4400 (L); 4250 (F); 4250 (R)
Travelling Speed: 2.5km/h
Travel Slope: 25 degree (36%)
Platform Dimension: 1400(L) x 1000(W) x 1570(H) mm
Gross Weight: 2480kg
CS-12
Product Features:
Maximum Working Height: 14m
Maximum Platform Height: 12m
Carrying Capacity: 200kg
Working Radius: 6.5m
Rotation Range: 360
Outrigger:
Travelling Speed: NA
Travel Slope: NA
Power Source: Options available Diesel/Gasoline/AC/DC
Wheels: Tire
Platform Dimension: 1400(L) x 1000(W) x 1570(H) mm
Weight: approx.. 1950kg
